Tools Needed
- Large Zip Ties - 8-10mm Sockets
- Electrical Tape
- Velcro Tape
- Android device with Google Play Store access.
Installation Time: ~15-30min depending on experience.
Sensor Location reference picture:
Step 1: Disconnect the battery
Step 2: Locate the section of cable labeled "MAP" from the ProTuner main harness. Disconnect the factory MAP sensor plug, and connect the Pro-Tuner MAP sensor cable.
Step 3: Locate the CRANK sensor underneath the factory Intake Pipe. Find the Y-cable labeled as "CRANK" from the Pro-Tuner box. Disconnect the factory CRANK sensor cable, and connect the Pro-Tuner CRANK sensor cable on each end of the factory plugs. Locate the matching plug from the Pro-Tuner main harness and connect the other end of the crank cable.
Step 4: Locate the section of cable labeled "BOOST" from the ProTuner main harness. Disconnect the factory BOOST sensor plug, and connect the Pro-Tuner BOOST sensor cable on each end of the factory cable. *Note: The BOOST map sensor is located on the pipe before the throttle body, and it looks just like the Map sensor you connected on the Step 2.
Note: The BOOST sensor is located on the cold pipe just before the throttle body
Step 5: Locate the CANbus cable from the Pro-Tuner, and connect it to the CANbus port located next to the engine by the passenger side. *You must position & connect the CANbus one slot lower, like it is shown on the picture. Use electrical tapes to secure the connection.
Step 6: Locate the Bluetooth Module from the Pro-Tuner box, and connect it to the matching plug on the Pro-Tuner harness. Step 7: Optional Speed Limiter Canceler(Green Wires) - Coming Soon
Step 8: Use electrical tapes on each end of the Blue & Green wires as they are not used. The white plug from the Pro-Tuner harness is for Tuner-Use only, so tape it as well.
Step 9: Locate and connect the power wire from the Pro-Tuner to terminal location inside the fuse box from the engine bay.
Step 10: Connect the main harness to the Pro-Tuner ECU. Use Velcro fastener to mount the Pro-Tuner ECU & Bluetooth module on the desired location under the engine bay.
Step 11: Connect the Battery

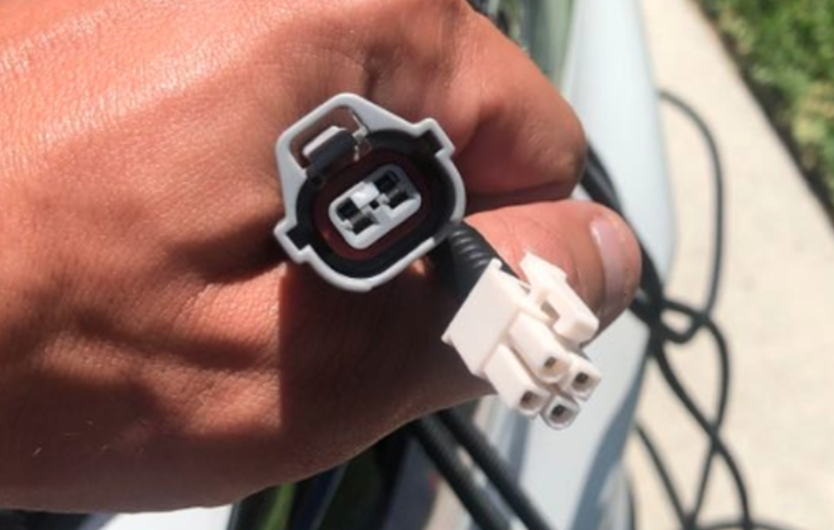

Step 12:The 2 Pin Gray connector is for the V2 ICM (Water Meth Injection System) & 4 pin white connector is for developer firmware update cable. Use electrical tape to seal them as they are not being used. The V2 Meth Injection system can be purchased @https://www.lap3usa.com/product-page/pro-tuner-v2-meth-injection-kit
Step 13: Check the Manufacture date stamped behind the Pro-Tuner ECU. Grab your Android device, install the following PROSS app from Google Play store based on the manufacture date. (*V1 does not have any manufacture date listed on the back)
Link to download Pro-Tuner V1.0 App(Manufacture date 2018): PROSS BT V1
Link to download Pro-Tuner V2.0 App(Manufacture date 2019): PROSS BT V2
Link to download Pro-Tuner V2.5 App(Manufacture date 2020): PROSS BT V2.5 (V2.5 app is also available on Apple App Store as PROSS Unclechip) Step 14: Start the car and pair the device through the Bluetooth Setting. *If you have V2.5, skip the bluetooth pairing process as it doesn't need to be paired
Step 15: When you open the app, it will ask you for serial#. The Serial numbers are located behind the Bluetooth module. Once its up and running, confirm the 3 indicators (Bluetooth,OBD2,Uncle Chip) on the app are red.
Step 16: Select the ECU CONTROL MODE button and to choose your mode.
V2 Pro-Tuner Mapping : Mode 1 - Stock Map
Mode 2 - 92 Octane Mapping
Mode 3 - 93 Octane Mapping
Meth Mode - Meth Mapping(Requires V2 Meth Kit & 70%+ M1 Methanol content)
User Mode - 91 Octane Mapping, which can be customized by the user
V1 Pro-Tuner Mapping: Mode 0 - Stock Map
Mode 1 - 91-92 Octane Mapping
Mode 2 - Mild 93 Octane Mapping
Mode 3 - E30/Meth Mapping (3/4 gallons of E85 and topped off with 91/93 octane) You can also run Mode 3 with Methanol Injection Kit with a ~500mm Nozzle. (Injection Start between 5-10psi & Max Spray @ 15-20psi
Step 17: Enjoy!
